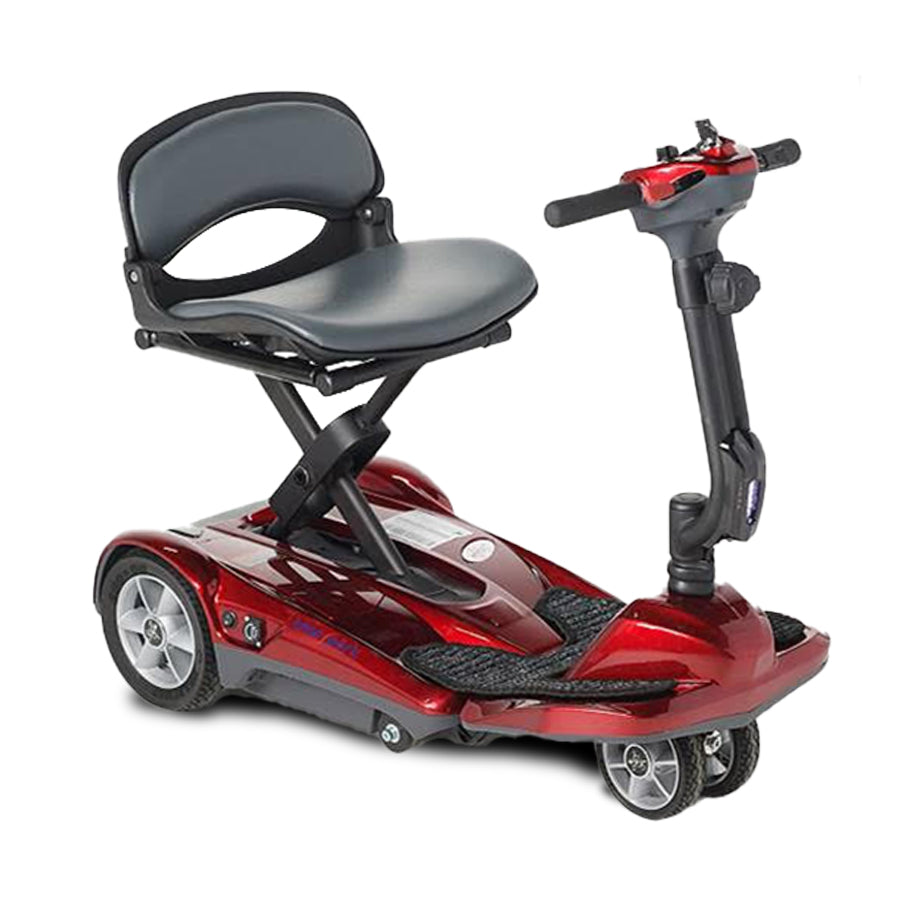

EV Rider Transport AF+

4-Wheel Electric Transportable Scooter - Top Speed 3.8mph - 180W

EV Rider TRANSPORT AF+ 4 Wheel Electric Transportable Scooter - 180W

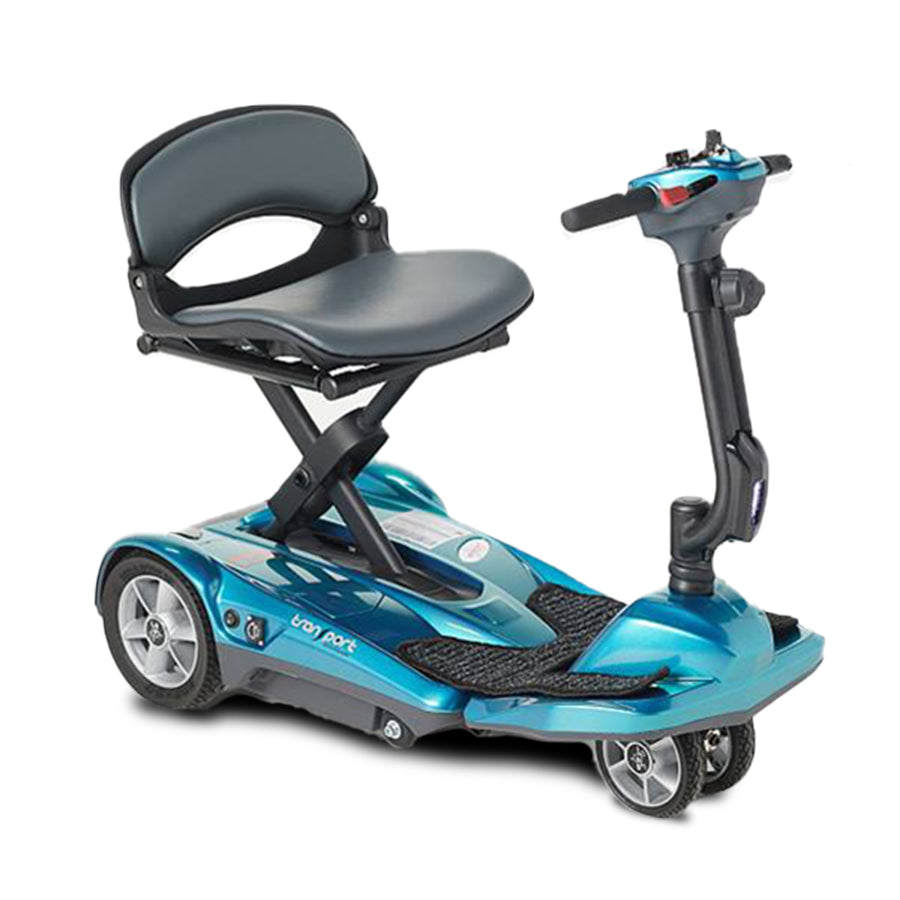

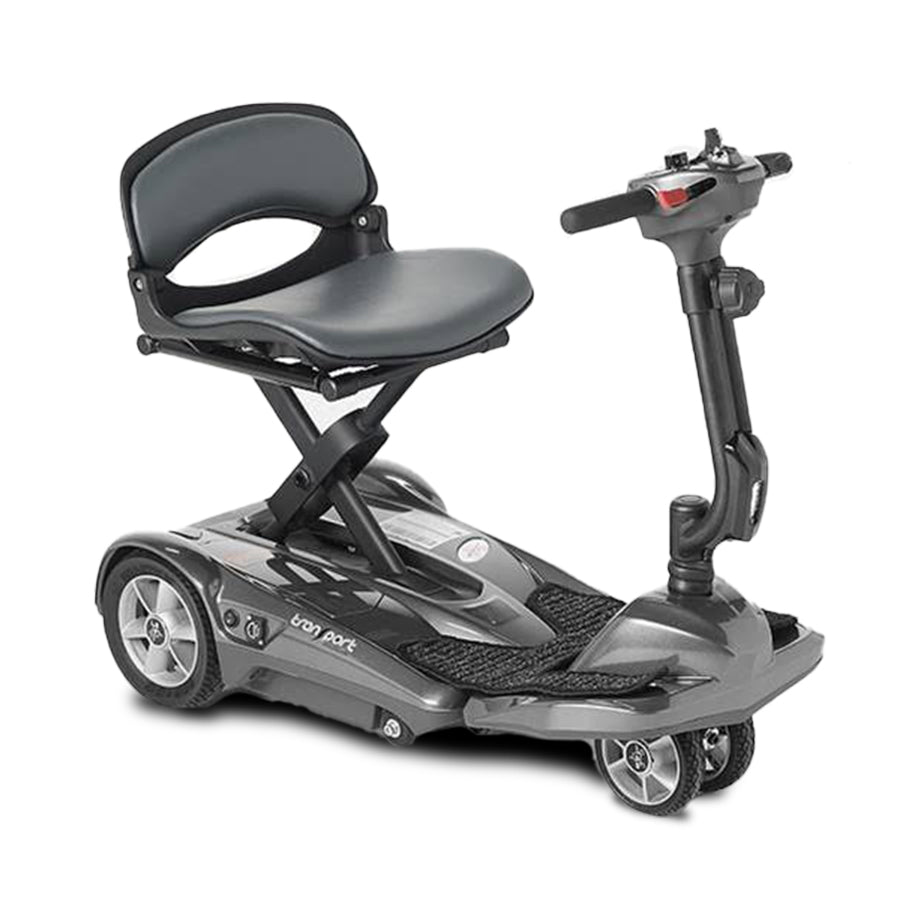

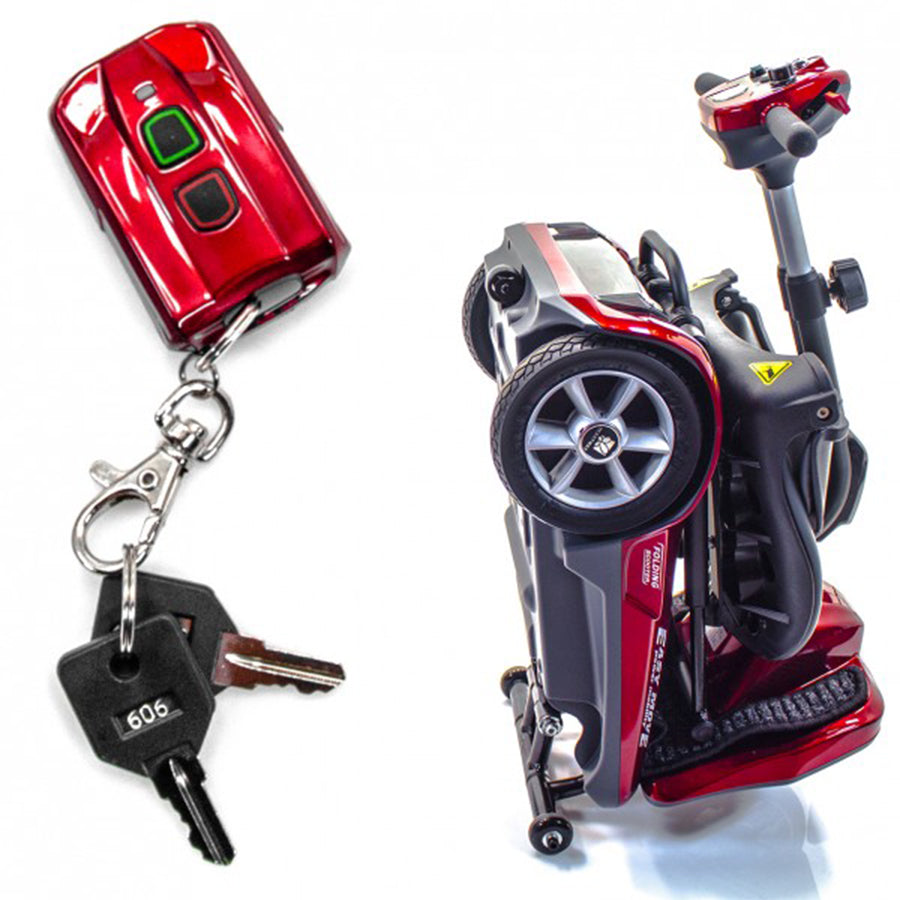

The EV Rider Transport AF+ scooter automatically folds up with your handheld remote. With the push of a button, it automatically folds in seconds! Approved for airline travel, the S19AF is equipped with an 11.5Ah lithium battery and weighs just 44 lbs making it perfect for travel on planes, trains, and cruise ships.

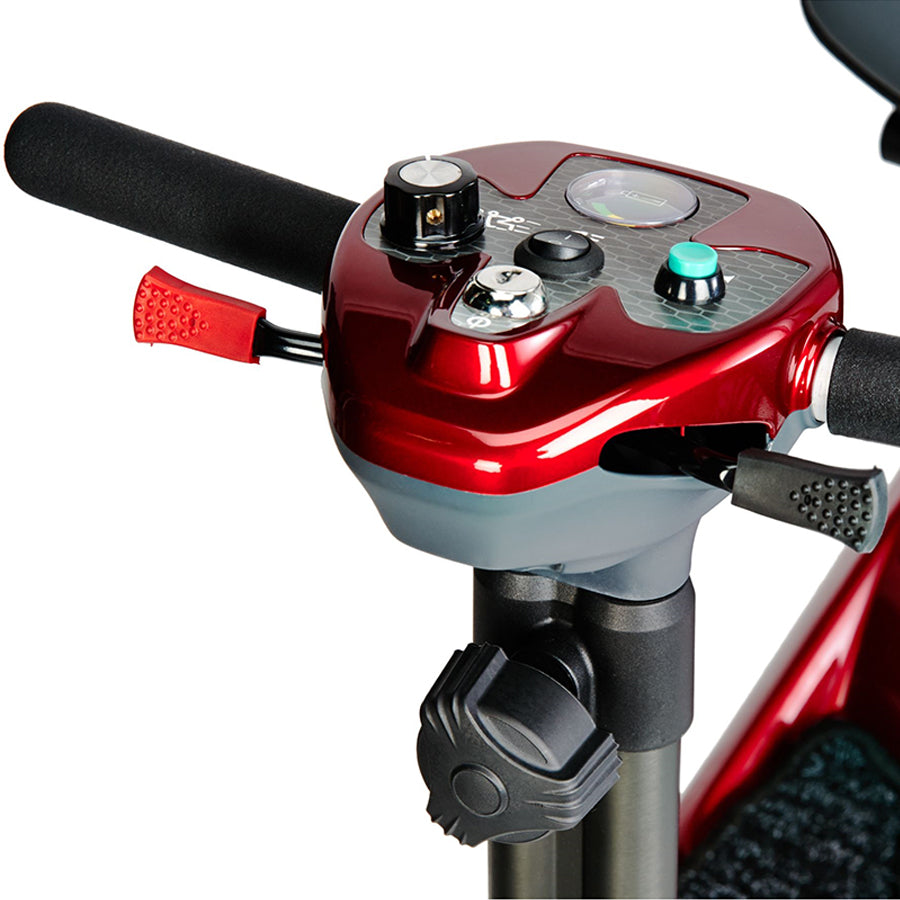

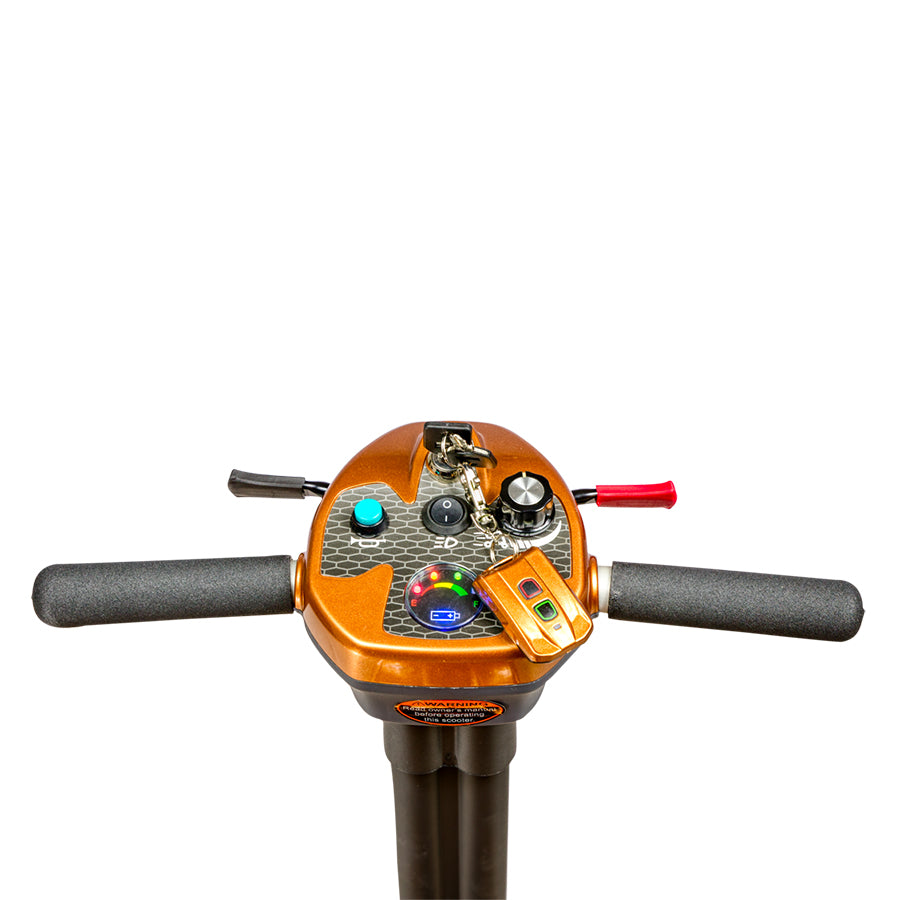

Due to its ultra-tight turning radius, this compact scooter offers great maneuverability in narrow spaces. It features a height-adjustable tiller, LED headlight, and dual hand two-way throttle control. It can be stored virtually anywhere and easily fits in the trunk of most automobiles. Just press the button and watch this innovative scooter unfold!

EV Rider has been in the ELECTRIC MOBILITY SCOOTERS business since 1996. It started with the design and distribution of battery powered scooters for all ages like the original Citybug, followed by products for active seniors like the Helper and the City Shuttle. EV Rider’s commitment to quality and outstanding customer service is supported by staff with over 30 years of experience in the design, development, sales and technical support of battery operated electric vehicles

SPECIFICATIONS

Overall Length   33.5″ in / 85cm

Overall Width    16.5″ in / 42 cm

Overall Height – at Maximum Tiller Height            33.5″ in / 85cm

Overall Height – at Minimum Tiller Height             30″ in / 76cm

Legroom – Floorboard Length x Width    17″ in / 43 cm

Deck Height – Floorboard to Floor             4.8″ in / 12 cm

Ground Clearance            1.4″ / 3.6 cm

Turning Radius  31″ in / 79 cm

Folded Overall Length    30” / 76 cm

Folded Overall Width      16.5″ / 42cm

Folded Overall Height     17.7” / 45 cm

Weight with 25.2V 11.5Ah Li Ion Batteries             44 lbs / 20 kgs

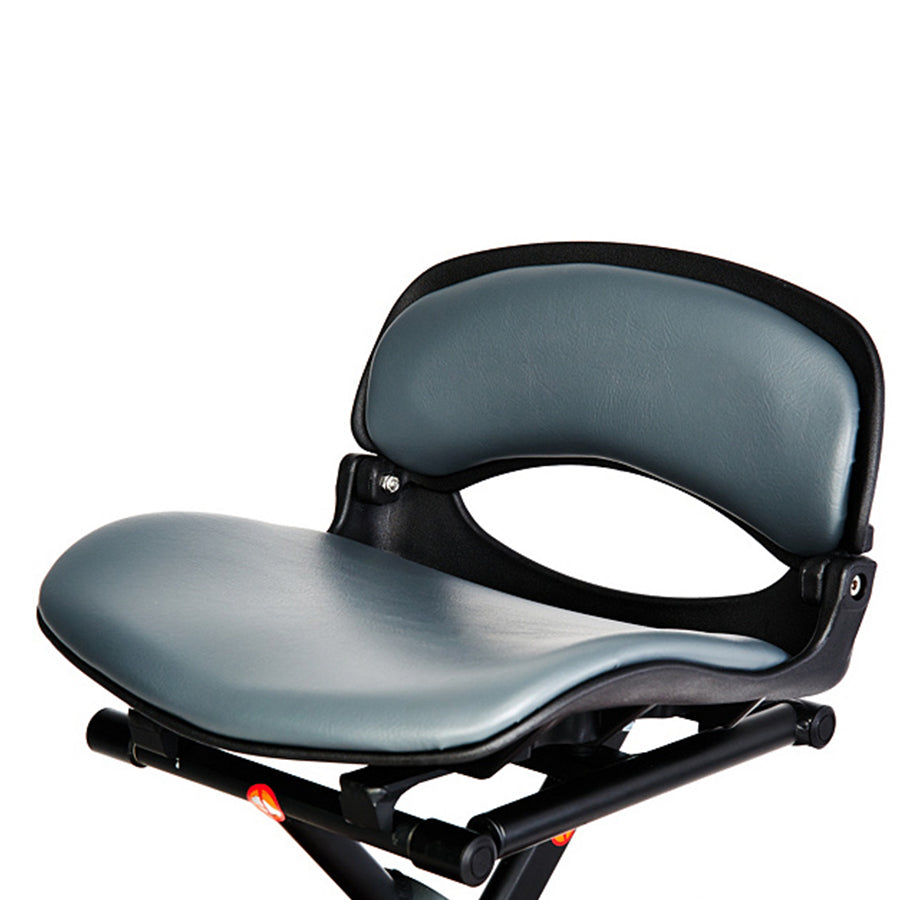

Seat Type            Folding Mobility Seat

Seat – Width & Depth & Height  15″ W x 12″ Depth x 9″H //38 cm x 30.5 cm x 23 cm

Seat – Cushion Thickness              1″ in / 25 cm

Seat Height – Cushion to Deck    15″ in / 38 cm

Seat Height – Cushion to Floor    19.7″ in / 50 cm

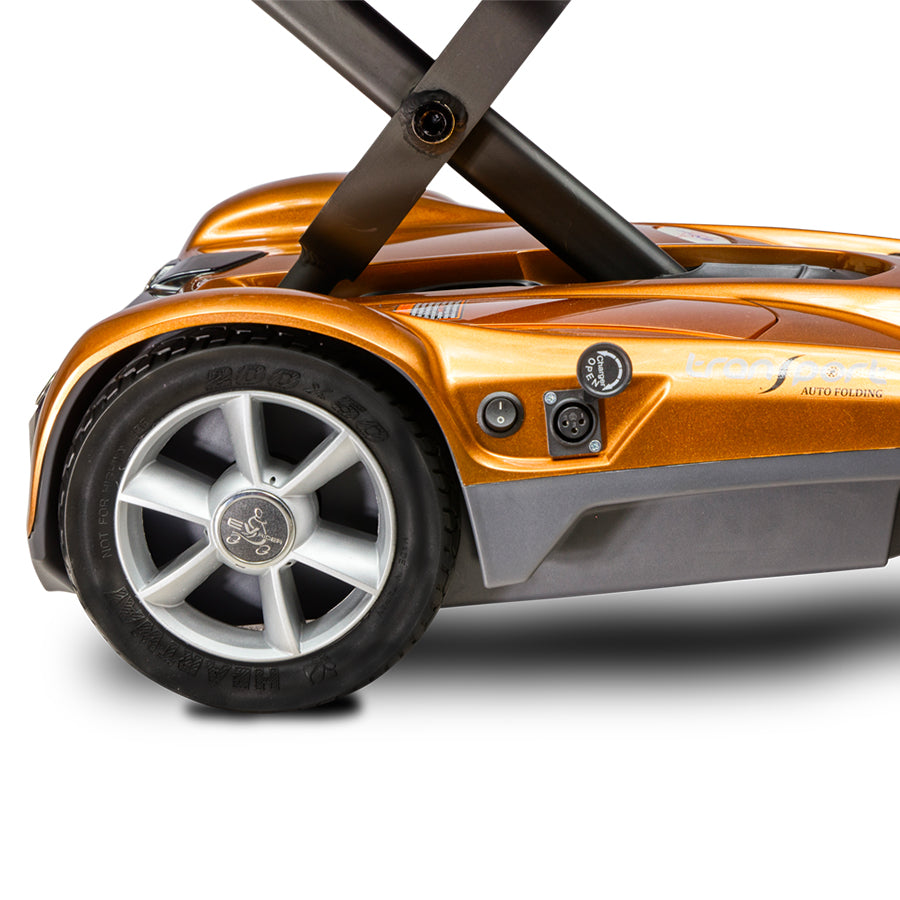

Tire Type             Solid Tires

Rim Type Rear   Industrial Plastic

Rim Type Front Industrial Plastic

OEM Spec Rear N/A

Outside Diameter Rear  8″ / 20 cm

Tire Width Rear 2″ / 5 cm

OEM Spec Front                N/A

Outside Diameter Front 6” / 15 cm

Tire Width Front               1.4″ / 3.5cm

Battery Type & Power    25.2V 11.5Ah Lithium Ion x1 (included)

Brake System     Electromagnetic

Climbing Angle – Maximum Recommended         3 degree

Charger Type     Off Board Li-Ion Charger

2.5 Amp 24 VDC, input: 110/240 Vac



Charging Time   4 – 6 hrs

Controller            Dynamic R‐Series 50A

*Driving Range  Up to 10 miles

Load Capacity    250 Lbs / 115 kg

Motor & Drive Location 180 watt 24 volt

*Speed – Maximum        up to 3.8 mph *

Colors   Blue, Copper, Bugurndy, Silver

Tiller Type           T-Shape Type

Throttle Control Type     Pot Meter

Anti-Tipper Wheels-Rear              Rear Casters – Standard

(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.



Remark: The manufacturer reserves the right to modify the specification if necessary. The final specification is subject to the individual scooter you purchase from your dealer.

Note: Maximum driving distance is based on an ambient temperature of 20°C, a 75kg driver and a brand new fully charged battery by a constant driving speed at 6.4 km/h with 70% battery power discharged.
