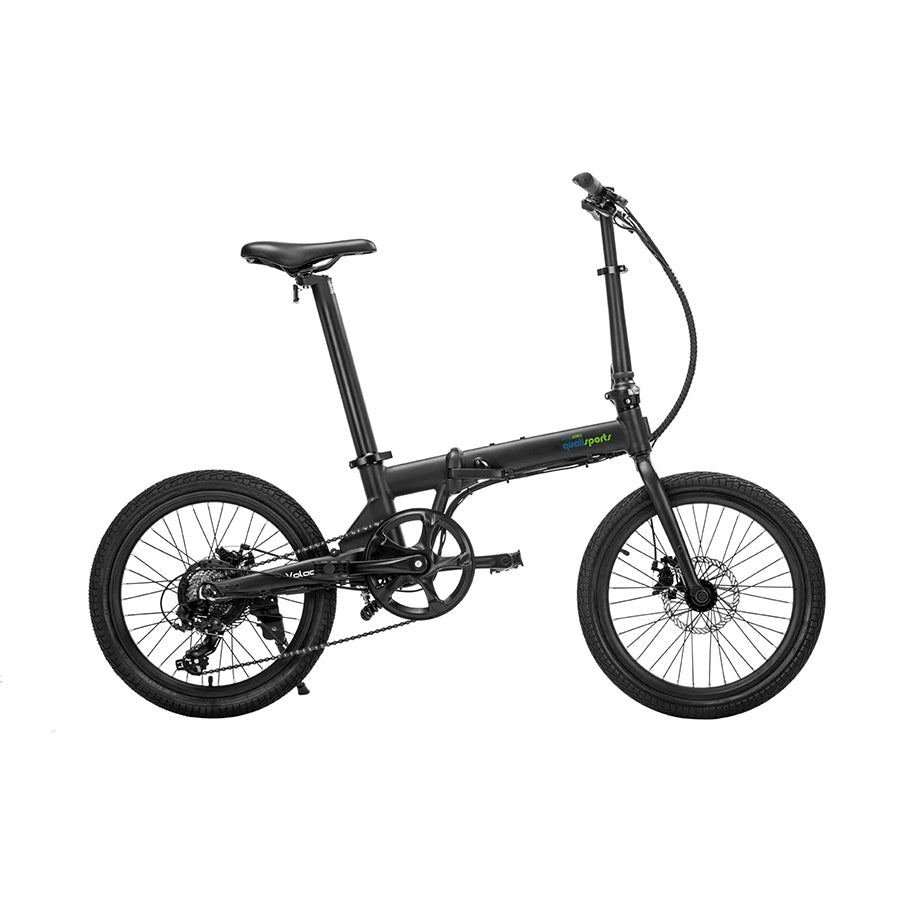

Qualisports Volador Electric Folding Bike – 350W
The Qualisports VOLADOR Electric Folding Bike, has a 350W High Speed Geared Mid Motor. All of our Electric Bikes are FOLDING bikes that easily fold down to a compact size for easy storage and transportation. The VOLADOR is built with a solid Aluminum Frame that can support up to a 220lb rider. Our customized 250W high speed geared brushless motor, weights only 2.2KG but it has 40 N.M torque, so you can easily go up hills with over 18° of steepness. We use 20 inch wheels to get up to 20 MPH speed.
In 2016, Qualisports, released its first lightweight folding electric bike named “Nemo” which only weights 30lbs, we obtained and secured a patent which features our hidden seat post battery design. This design makes our E-Bikes stylish, unique and distinguished from all the other battery designs in the market.
After 18K units sold and tons of feedbacks on the Nemo, Qualisports proceeded to launch our E-Bike named the “Volador”. This folding e-bike was upgraded with a 350W motor, Shimano 7 Speed shifting, 20 x 1.95 Kenda road tires and brilliantly paired up with a 36V 7-Ah Samsung hidden battery design. The Volador weighs only 40lbs and it has become very popular with commuters and land explorers alike and has also received great review.
We have designed a unique battery system inside the seat post, saving space and allowing easy disconnection for security and for easy recharging at home. And our Battery Management System is also important, It keeps your battery safe from over-charging, as well as reaching high temperatures and overheating. The BMS also manages all the cells to work more efficiently to offer you a longer range. Estimate 30 miles per charge. Takes 3 hours to charge up.
Our smart braking system uses front and rear 160mm disc brakes that automatically alerts the Cruise Control, Throttle and PAS system. Our Pedal Assist System gives you 7 levels of assisted riding plus Throttle control to ride like a scooter, use Cruise Control Mode or you can just peddle it like a regular bike too. The PAS sensor detects your intention and adjusts as needed, connecting the 12 sensor points and controller with the LCD display.
The VOLADOR frame and fork is made of industry grade Aluminum Grade 6061. Our new design is sleek, light and strong enough for a Cyclist weighing 220lbs to feel comfortable on it.

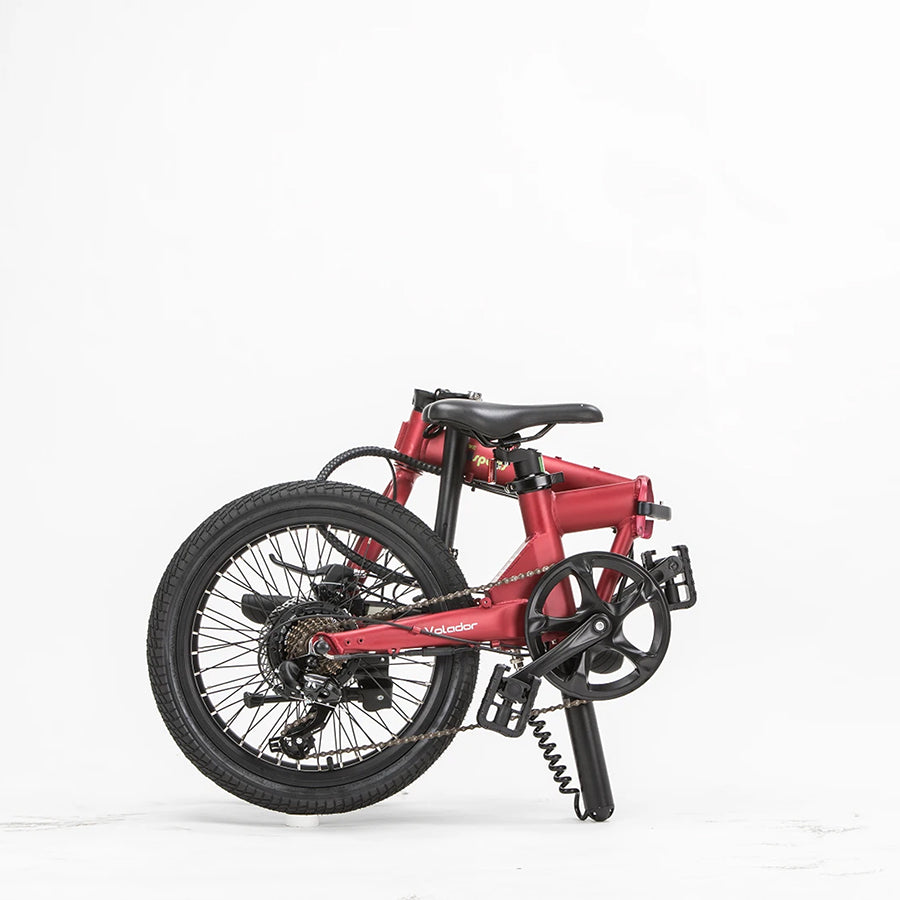

Easily folds down to a compact size for easy storage and transportation.
The VOLADOR distinctive look is achieved through the work and dedication of our designers and engineers combined efforts to strategically place the Lithium battery within the seat-post, integrating functionality and design to power the e-bike.
Rated at 30 Miles *Results can vary based on the road conditions (flat versus inclines) as well as weather conditions such as wind or light breeze and the actual Cyclist weight.
MULTIFUNCTIONAL LCD DISPLAY
The on-screen computer lets you easily see your speed and battery life remaining.
Customized 350W high speed geared brushless motor with enough pulling power so you can effortlessly conquer an 18° climb. Brushless motors are smoother, more efficient and no magnetic drag when you ride the bike without any power.
SHIMANO 7-SPEED GEARS
The Volador is equipped with a Shimano Tourney 7 speed mechanical gear system, so every Qualibiker can experience a much more fantastic riding especially when you are hilling.
PAS PEDAL ASSIST SYSTEM
Our multifunction fully integrated large LCD display features a 12 point sensor and “FOC” technology (Field Oriented Control). With FOC we can control and drive motors with higher efficiency and less noise and operates in sync with our PAS “Pedal Assist System”.
FOUR RIDING STYLES
You have four choices of either riding with PAS, or with the Cruise Control Mode, Pedal like a normal bicycle or throttle mode (available). The intuitive sensor can detect every mode and precisely respond creating a seamless riding experience

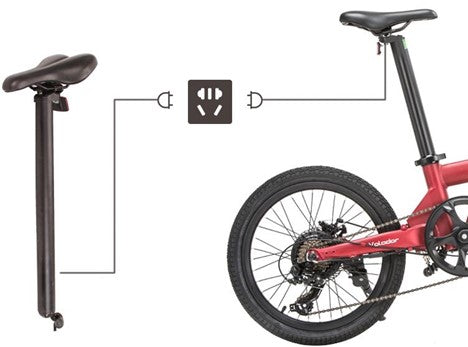

The seat-post battery is removable so you can either charge it in the bike or separately in your room. The battery is a 36V 7Ah Samsung Battery capacity which charges in 3 Hours
The Volador features Front and Rear disc brakes to keep you safe. When the brakes are engaged it triggers a safety mechanism that disengages the motor and shuts down the power system.

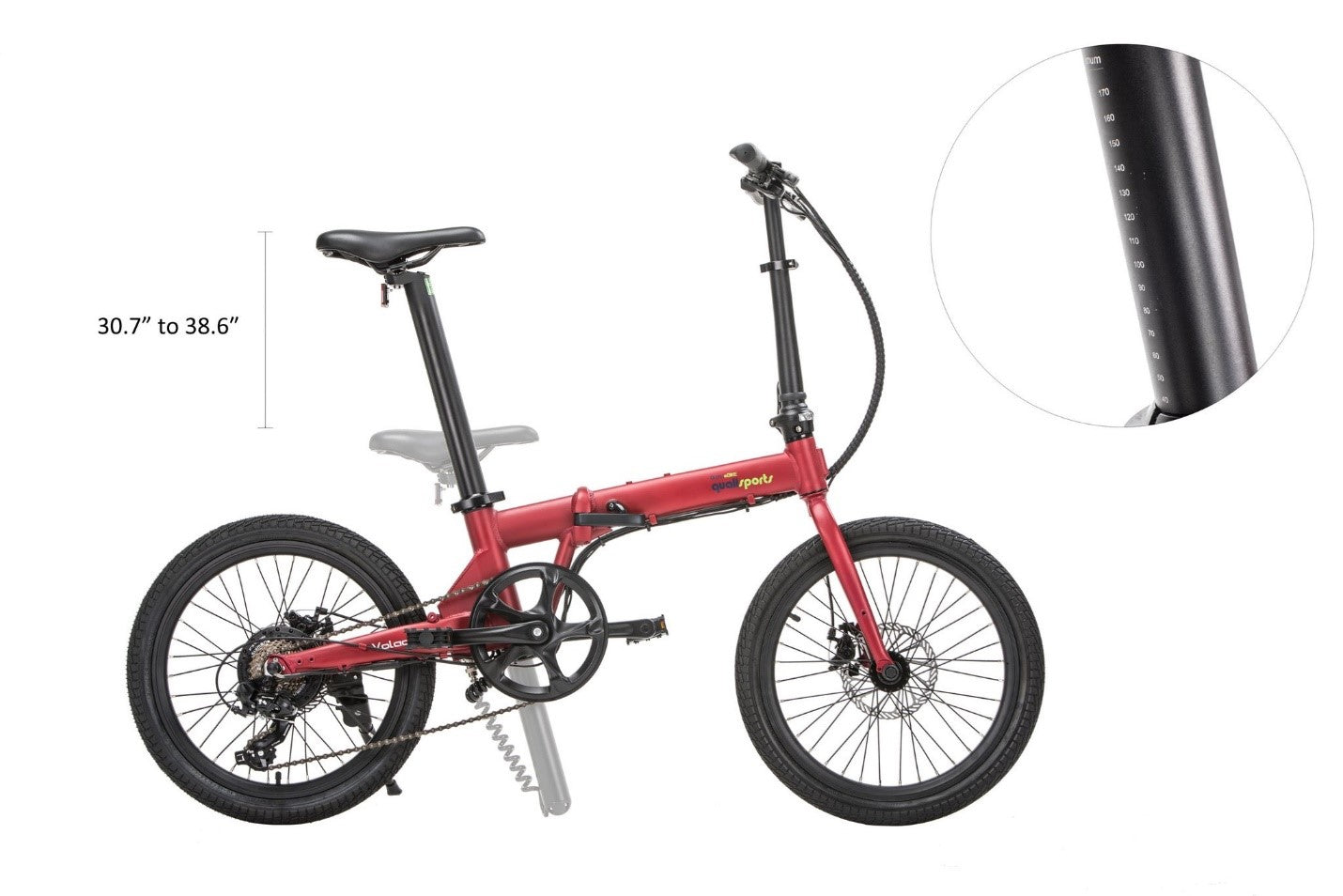

ADJUSTABLE SEAT HEIGHT
This bike can comfortably accommodate a Cyclist ranging from 150 – 195 cm— (5′ to 6’3″) so mom, dad and the kids can all share it.
Quality is in our name and we build our products with quality parts inside and out
Product name: Volador
Motor: MXUS 350W brushless geared DC motor
Brakes: 160mm disc brakes
Model name: QSEB02
Rated output power: 350W
Rim: 20 inch Al-Alloy 13G36H
Motor efficiency: ≥80%
Tire: Kenda 20*1.95
Folded Size: 32.68*15.75*26.38inch
Rated RPM: 265±10r/min
Chain wheel: Prowheel 52T
Rated voltage: 36V
Free wheel: Shimano 7 speed
Net weight: 36lbs
Max torque: 40N.m
Front hub: Sigma Al-Alloy
Range: 31miles (PAS )
Overcurrent protection: 12±1A
Max. load: 220lbs
Low-voltage protection: 30±1V
Handle bar: Promax
Max. speed: 20MPH
Display: Kunteng LCD
Charging time: 3 Hrs
Modes: 5 levels+ throttle + walk assist
Controller: Kunteng sine wave FOC
Battery type: Samsung Lithium-ion
Tire diameter: 20 inch
Brake levers: Al-Alloy e-bike lever
Battery capacity: 36V 7.0Ah
Frame: 20 inch 6061 Al-Alloy foldable
Noise : ≤ 62 dB(A)
Front fork: 20 inch 6061 Al-Alloy
Pedal: foldable pedals
