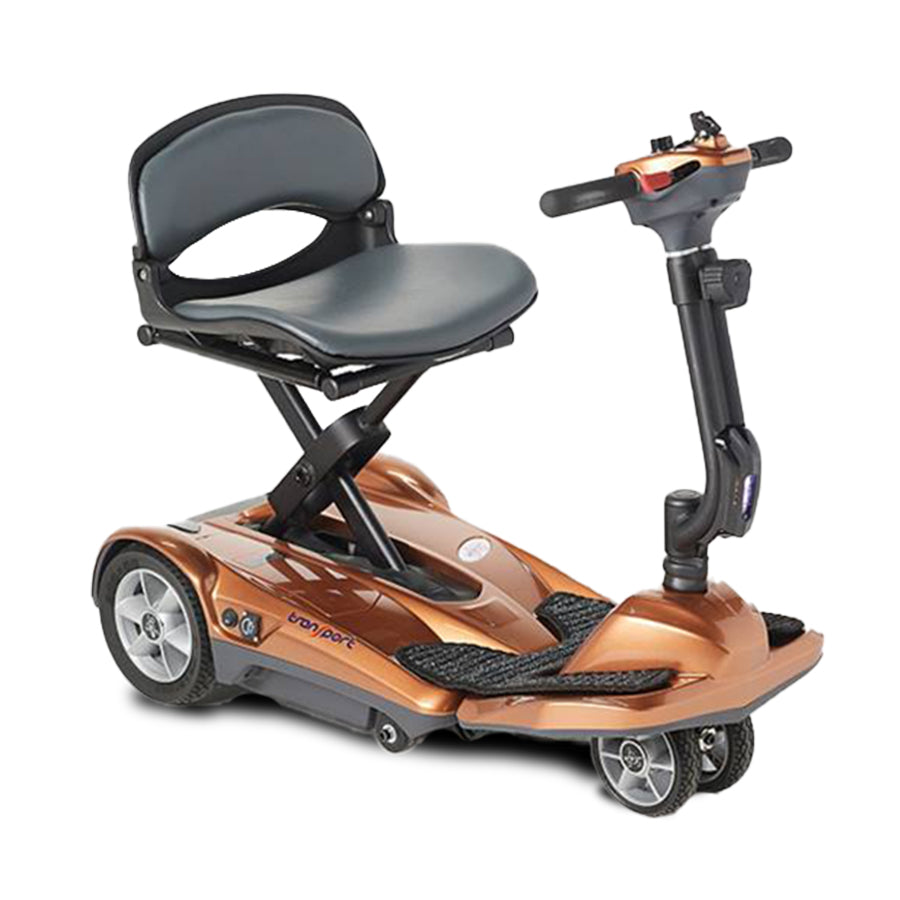

EV Rider TRANSPORT AF+ 4 Wheel Electric Transportable Scooter - 180W

SPECIFICATIONS

Overall Length   33.5″ in / 85cm

Overall Width    16.5″ in / 42 cm

Overall Height – at Maximum Tiller Height            33.5″ in / 85cm

Overall Height – at Minimum Tiller Height             30″ in / 76cm

Legroom – Floorboard Length x Width    17″ in / 43 cm

Deck Height – Floorboard to Floor             4.8″ in / 12 cm

Ground Clearance            1.4″ / 3.6 cm

Turning Radius  31″ in / 79 cm

Folded Overall Length    30” / 76 cm

Folded Overall Width      16.5″ / 42cm

Folded Overall Height     17.7” / 45 cm

Weight with 25.2V 11.5Ah Li Ion Batteries             44 lbs / 20 kgs

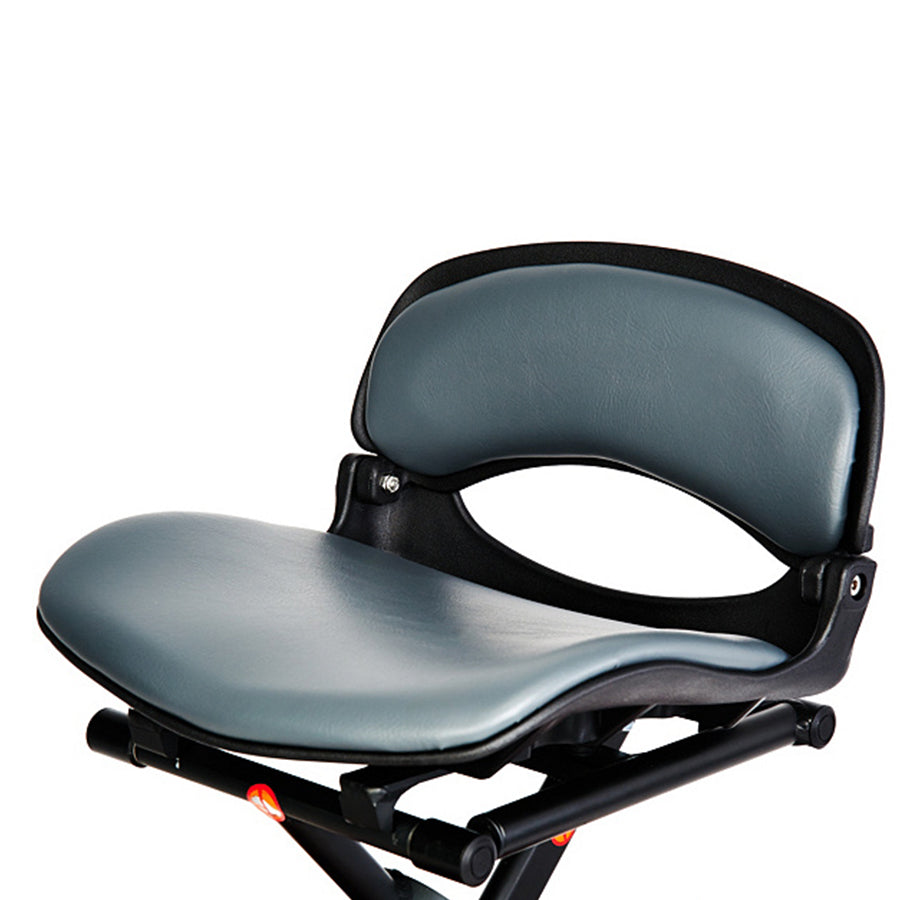

Seat Type            Folding Mobility Seat

Seat – Width & Depth & Height  15″ W x 12″ Depth x 9″H //38 cm x 30.5 cm x 23 cm

Seat – Cushion Thickness              1″ in / 25 cm

Seat Height – Cushion to Deck    15″ in / 38 cm

Seat Height – Cushion to Floor    19.7″ in / 50 cm

Tire Type             Solid Tires

Rim Type Rear   Industrial Plastic

Rim Type Front Industrial Plastic

OEM Spec Rear N/A

Outside Diameter Rear  8″ / 20 cm

Tire Width Rear 2″ / 5 cm

OEM Spec Front                N/A

Outside Diameter Front 6” / 15 cm

Tire Width Front               1.4″ / 3.5cm

Battery Type & Power    25.2V 11.5Ah Lithium Ion x1 (included)

Brake System     Electromagnetic

Climbing Angle – Maximum Recommended         3 degree

Charger Type     Off Board Li-Ion Charger

2.5 Amp 24 VDC, input: 110/240 Vac

Charging Time   4 – 6 hrs

Controller            Dynamic R‐Series 50A

*Driving Range  Up to 10 miles

Load Capacity    250 Lbs / 115 kg

Motor & Drive Location 180 watt 24 volt

*Speed – Maximum        up to 3.8 mph *

Colors   Blue, Copper, Bugurndy, Silver

Tiller Type           T-Shape Type

Throttle Control Type     Pot Meter

Anti-Tipper Wheels-Rear              Rear Casters – Standard

(*) SPECIFICATION PERFORMANCE IS DETERMINED IN THE LABORATORY SETTING BASED ON IDEAL CONDITIONS (MINIMAL FRICTION, NO WIND AND CONTROLLED TEMPERATURE AND PRESSURE WITH AN AVERAGE STANDARD WEIGHT). ACTUAL PERFORMANCE WILL BE DIFFERENT THAN RESULTS OBTAINED DURING LABORATORY TESTING.

Remark: The manufacturer reserves the right to modify the specification if necessary. The final specification is subject to the individual scooter you purchase from your dealer.

Note: Maximum driving distance is based on an ambient temperature of 20°C, a 75kg driver and a brand new fully charged battery by a constant driving speed at 6.4 km/h with 70% battery power discharged.

RETURNS AND REFUNDS


EV Rider Return Policy

• EV Rider charges a 15% restocking fee for ALL returned items. The return fee is charged back to the dealer or end-user based on wholesale or retail cost. Returned products must be in selling condition as
• Shipping for items qualifying for free shipping will be deducted from remaining credit of eligible refund
• Dealers & end-users must call EV Rider Tech Support and obtain a Return Manufacturer’s Authorization Number (RMA #).
• Do not return units or parts without an RMA #. Returned units or parts with out a proper RMA number will be refused or returned at the shipper’s
• Credits will be granted upon inspection of the returned product(s).
• Custom orders and assembly fees if applicable, are non-refundable.
• Dealers may offer a return policy in addition to the basic EV Rider Return Policy.
• Units and Parts must be returned within 30 days from date of purchase and with an authorized RMA #.
• If the part or unit is shipped back to EV Rider by the dealer or end-user:

• The Customer (dealer or end-user) is responsible for shipping parts or products back to EV Rider at his/her own
• The product must be packaged carefully and clearly marked with an RMA # so that a credit can be processed accurately. Improper packaging may cause shipping damage to the product being returned. This will impact the amount of credit to be refunded. All damaged parts or units must be replaced and/or repaired at the sender’s
• Original shipping charges are not refundable. If the product was sent with “free shipping” the original shipping costs will also be deducted from the refund.

For questions regarding this policy, please call EV Rider at:

800-944-1997   9:00 am – 5:00 pm ET.

EV Rider, LLC

6410 Arc Way, Suite A, Fort Myers, FL 33966 Phone:  239-­‐278-­‐5054    Fax:  239-­‐278-­‐1431

Sales 1-­‐800-­‐944-­‐1997   9:00 am – 5:00 pm ET

www.evrider.com

SHIPPING AND DELIVERY

Shipping policy:
If the order comes in before 1 pm EST, the unit ships the same day, after 1 PM, the unit ships the next business day. Usually the unit will ship within 24 hours.

We strongly recommend that you inspect the packaging of your item(s) when they arrive, if you notice any damage you should make note of it when signing for delivery.  If your item(s) do arrived damaged, please take photos to send to the supplier so they can handle your return. You will need to contact the manufacturer and get a RMA number before you can begin the return process. Most suppliers also require you to keep the original packaging to return.

Order Confirmation:

As soon as you place your order, you will receive an order confirmation e-mail.  This means that we have received your order in our system and pre-authorized your credit card for the purchase.  As soon as we receive your order, we automatically reach out to our suppliers to confirm that it is in stock and available for immediate shipment.  If your item is on backorder or unavailable, we will void the pre-authorization and reach out to you via e-mail.  If your item(s) are available for immediate shipment (within 5 business days), we will process the charges and submit the order for shipment.

Order Shipment:

If your order is stock and we process the charges to your credit card, it will ship within five business days from the date of your order.  We will send you tracking information within 24 hours of your order leaving the warehouse to the e-mail address you provided when checking out.  If you do not receive tracking information from us within six business days of your order, feel free to follow up with us at info@ElectricWhispering.com

WARRANTY

Warranty by EV Rider, LLC THREE-YEAR LIMITED WARRANTY Three (3) years from the date of purchase on all structural frame components; including platform, seat post, and frame.

ONE-YEAR LIMITED WARRANTY
One (1) year from the date of purchase, if any part or electronic component of the Scooter or charger is found upon examination to be defective in material and/or workmanship, it will be repaired or replaced, at EV Rider, LLC’s option, without charge. Labor charges are NOT included. The purchaser is responsible for the delivery to the authorized repair facility. Satisfactory proof of purchase, serial number and the date of purchase are always required. For warranty service, please contact the dealer/company from whom you purchased your EV Rider product.

6 MONTHS LIMITED WARRANTY All spare parts carry a six month limited warranty from the day of sale. This includes replacement batteries and chargers sold separately from the original scooter purchase.
SHIPPING - DOMESTIC: All warranty items will be shipped via Fedex Ground. Requested expedited shipping will be at the expense of the purchaser.
SHIPPING - INTERNATIONAL: Parts will be provided under warranty at no charge, but shipping to any offshore and/ or international location will be the responsibility of the purchaser. International and offshore end-users must contact the dealer/distributor directly to initiate the warranty process.
ONE-YEAR WARRANTY EXCEPTIONS Motor: In cases where there is an increase in the operational noise level, the warranty does not apply. (An increase in operational noise level usually occurs due to abusive and excessive strain on the scooter).

The batteries are warranted by EV Rider for one year after the purchase of the Unit with the exception of the Stand-NRide scooter.
Service: Warranty service can be performed by EV Rider, LLC or by an authorized EV Rider, LLC service facility. Do not return faulty parts to EV Rider, LLC without prior consent. A request for a Return Authorization is required prior to returning items. All transportation costs and shipping damage incurred while submitting units and/or parts for repair or replacement are the responsibility of the original purchaser.

WARRANTY EXCLUSIONS: This warranty is only given to the original purchaser of the Scooter. This Warranty excludes:
• Batteries that are provided free with the scooter. See the EV Rider invoice/packing slip for additional detail.
• Consumable items which may need replacing due to normal wear and tear (tires, tubes, belts, bulbs, upholstery and seating, motor brushes, fuses, plastic shrouds and footrest covers, etc.)
• Damaged caused by: battery fluid spillage or leakage, abuse, misuse, accident, or negligence, improper operation, excessive loading, maintenance, or storage, commercial use or use other than normal.
• Used other than for the purpose of the purchaser’s mobility.
• Repairs and/or modifications made to any part of the scooter without specific and prior consent from EV Rider, LLC.
• Labor, service calls, shipping, and other charges incurred for repair of the product not approved by EV Rider, LLC.
Batteries: Batteries carry a limited warranty which is subject to a stringent wear and tear clause. Any battery faults due to a defect in the original manufacture will normally become obvious within the first two months of use. Any gradual deterioration in performance after this period is normally associated with fair wear and tear, misuse or accidental damage and as such is not covered by the manufacturer’s warranty. There is no other express warranty.
Implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one (1) year from the date of the original purchase and to the extent permitted by law. Any and all implied warranties are excluded. This is the exclusive remedy. Liabilities for consequential damages under any and all warranties are excluded.
Some states do not allow limitations on how long an implied warranty lasts or do not allow the exclusion of limitation of incidental or consequential damages. So, the above limitation or exclusion may not apply to you.
EV Rider, LLC // www.evrider.com 800-944-1997
